Marking on Transmission Spindle

Marking on Transmission Spindle image 1
Marking on Transmission Spindle thumbnail image 1


Stainless Steel Component

Technology Type:

Dot Peen Marking


The customer required a robust integrated machine to fit into their production line. It needed to mark 500 parts per day and be able to mark in a polluted environment.

Technical Details:

  • Material: Steel
  • Lines: 1
  • Characters: 4
  • Character height: 2.5mm
  • Force: 5
  • Speed: 5
  • Font: 2
  • Frequency: 500 parts per day
  • Mark type: Alphanumerical

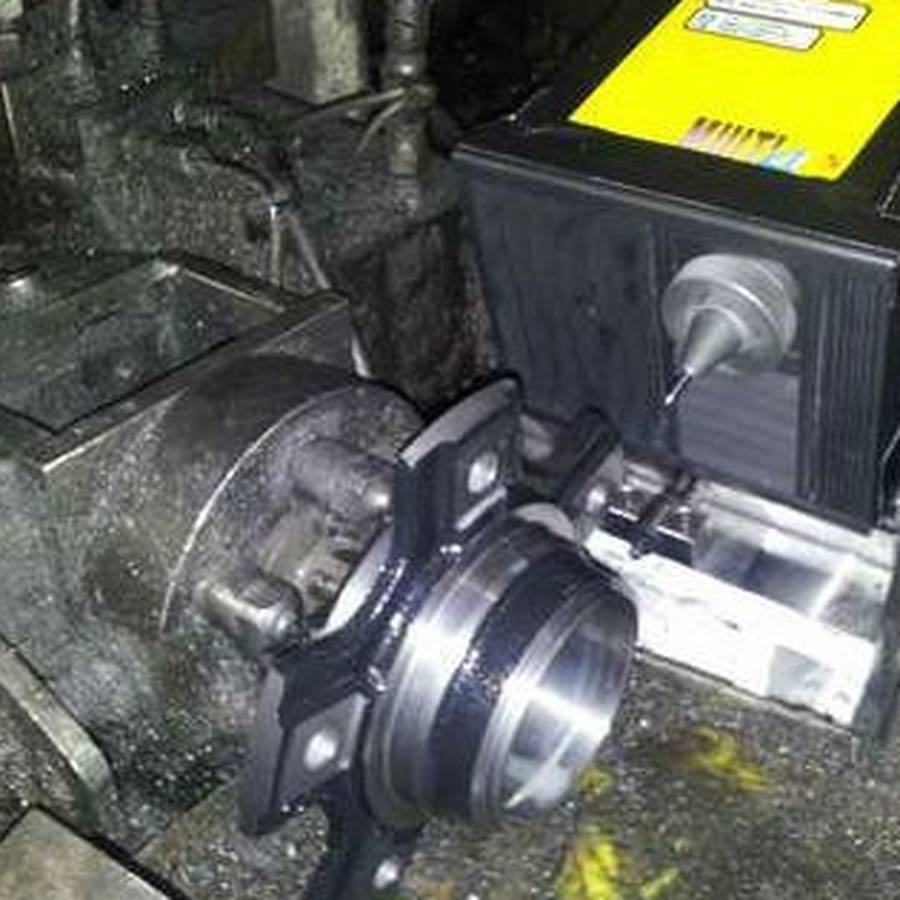

A fully automated Multi4 Integrated 50 has been installed with a supplier of automotive parts for Suzuki and Aishin Takaoka since 2011.

This machine marks 500 transmission spindles per day. Four characters are marked on one line and they have a height of 2.5mm.

The marking head and control box require extra protection due to the dusty and oily environment the parts are marked in.

Pure air is injected into the marking head to prevent anything getting inside the mechanics.

The machine is also equipped with the IDI mark function. This function ensures the quality of the mark regardless of the shape of the component and the difference in height between the part and the stylus.
