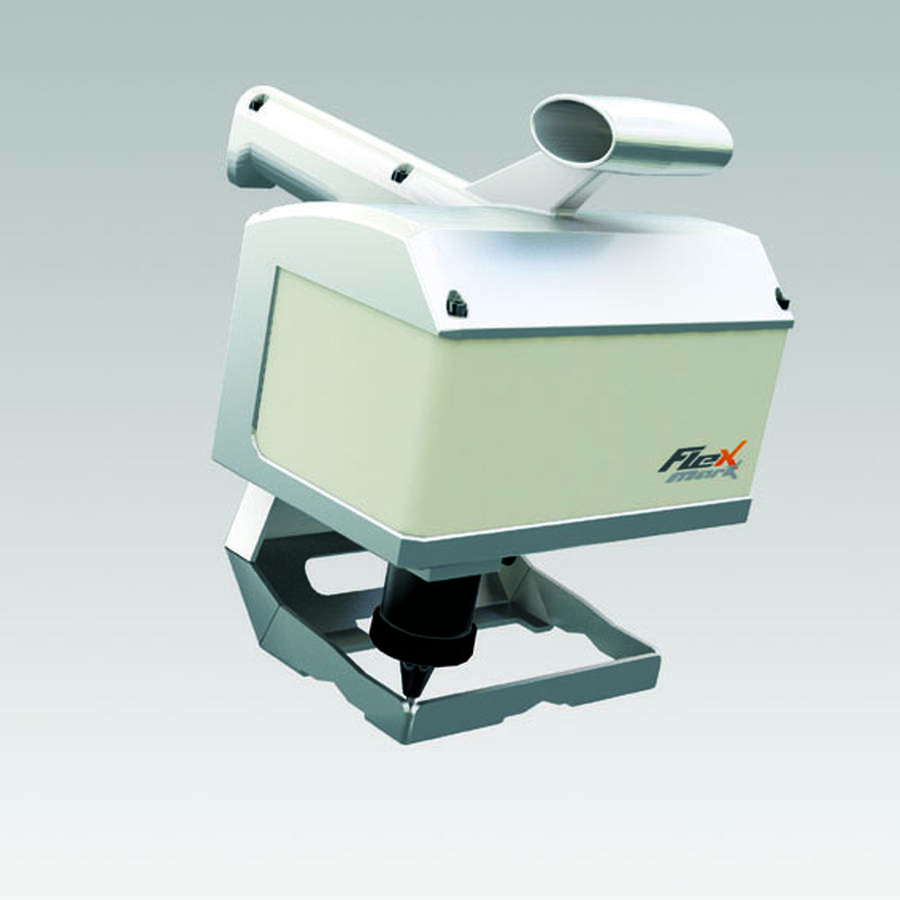

Flexmark Combo Entry Level
2-in-1 system combining a handheld and bench configuration. An easy to use system, for marking low to medium volume alphanumeric data, logos and graphics. This is a mains connected system perfect for marking both small and larger parts.
Product Details
-
Features
- 120mm x 60mm marking window
- Suited up to mark up to 500 parts per day
- It takes just 10 seconds to convert the machine from the benchtop model to the handheld model
- High resolution colour screen with easy to use icon based navigation - get started in minutes

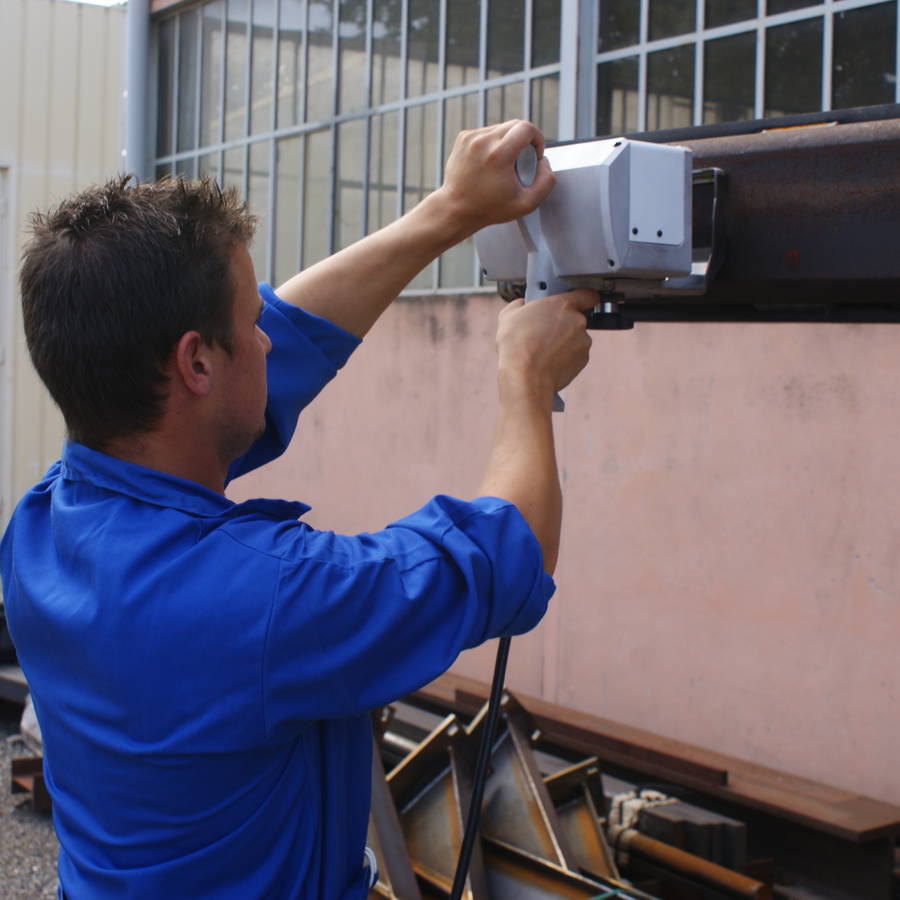

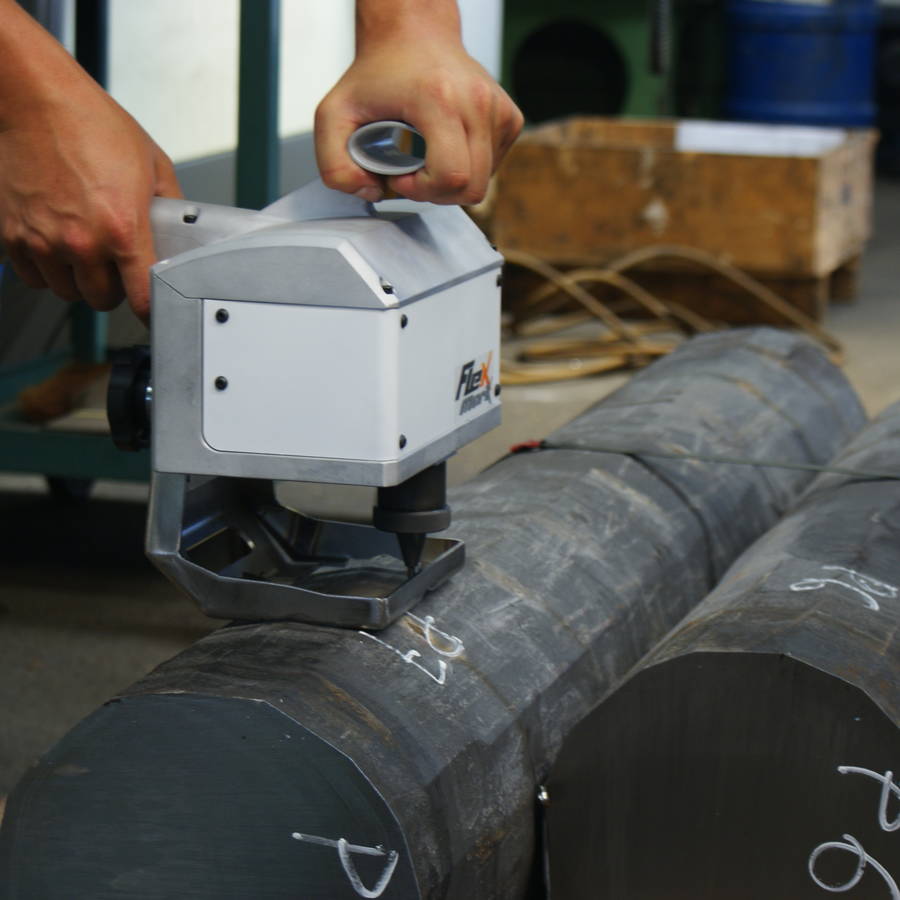

- Ergonomic design with two holding handles on the marking head when using as a handheld
- Marks alphanumeric data, logos and graphics
- Robust cast aluminium construction
- Quiet electromagnetic stylus technology
-
Technical Features

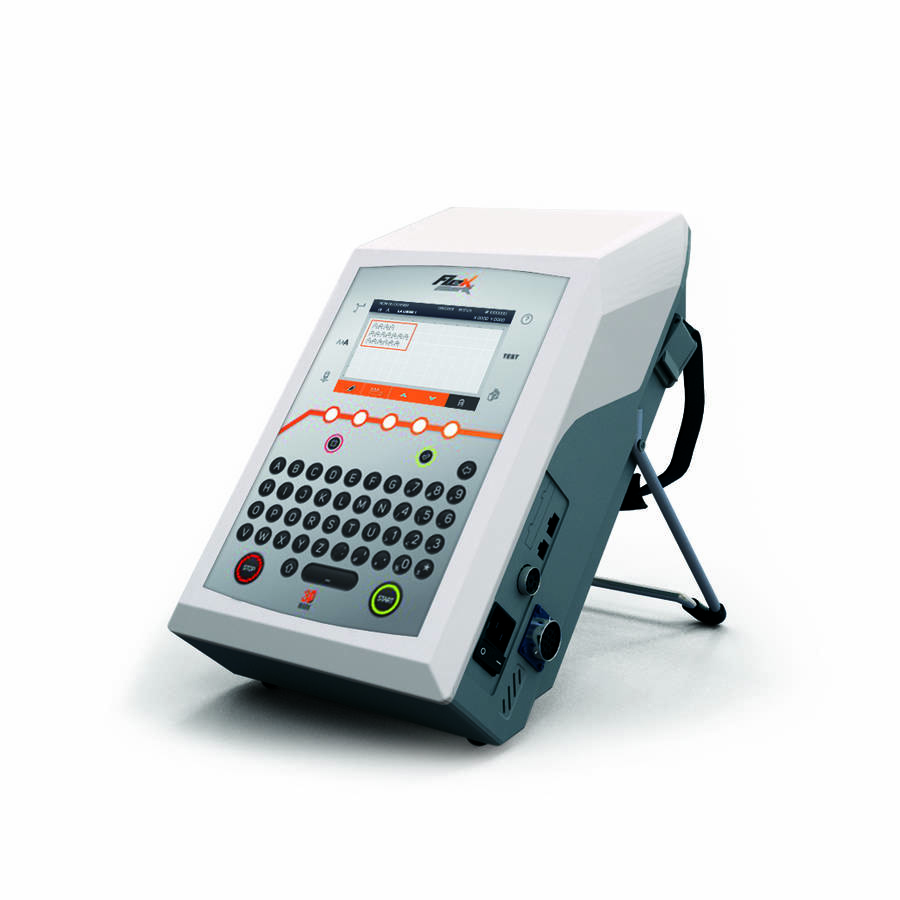

Controller

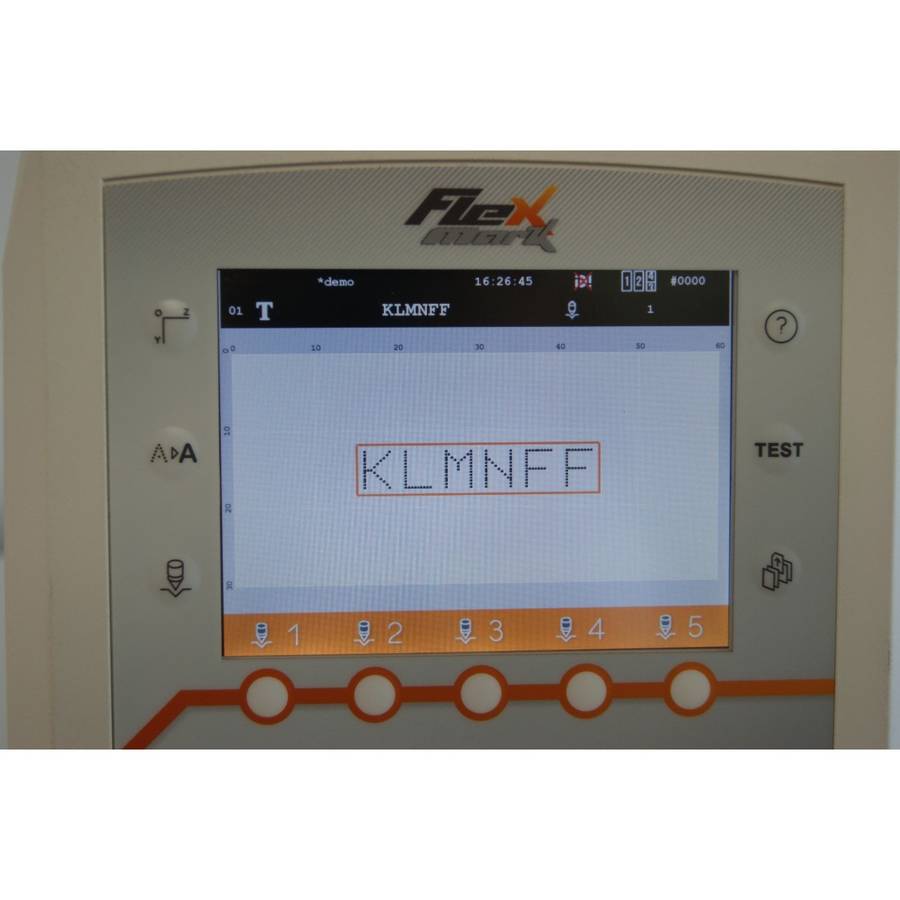

- Large high definition colour screen (640 x 480 pixels)
- Intuitive icon based navigation
- IDI Marking
- Communications: RS232 connection and 3 x I/O, USB port for import/ export as well as back up files/ logos
- Easy shift feature: graphic view of text repositioning in the marking window
- Multi-lingual: 21 languages available
- Ergonomic design including carry handle
- Storage capacity of up to 10,000 files (40 characters on a single line)
Dimensions & Weight
- Marking Head & Bench: 400 x 350 x 600 mm (L x W x H) - 11kg
- Controller: 370 x 215 x 139 mm (L x W x H) - 5.4kg
-
Accessory Options
Standard Duty Rotary Axis
- Used to mark cylindrical parts
- Rotation is automatically driven for high quality marking
Heavy Duty Rotary D Axis
- Used to mark heavier cylindrical parts
- Rotation is automatically driven for high quality marking
Nameplate/ tag support fixture
- Quick positioning on the base & easy positioning of the nameplate
- Quick fixing and release of the plate utilising a magnet
